Description

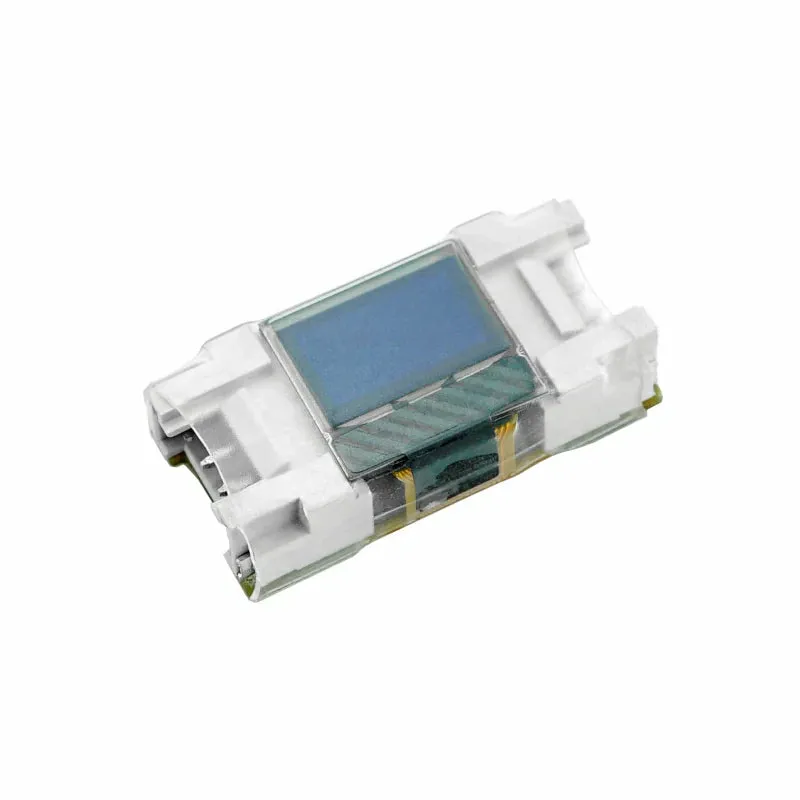

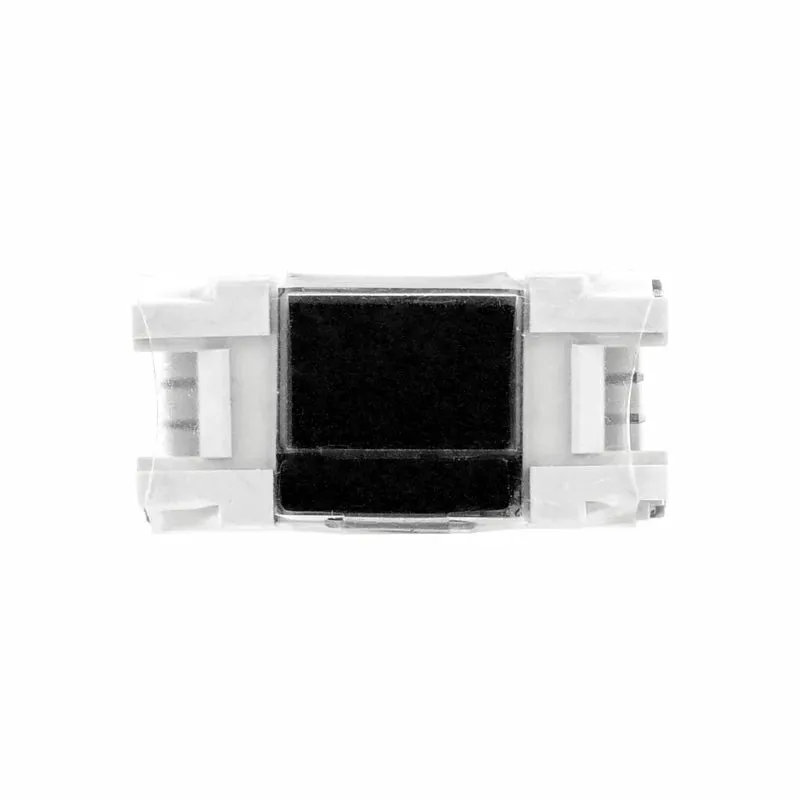

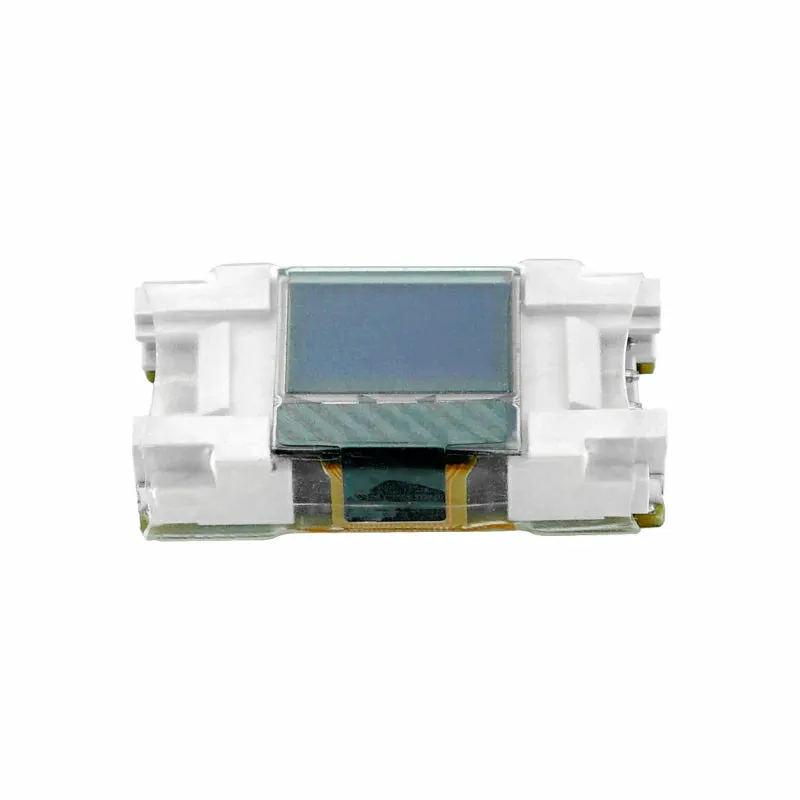

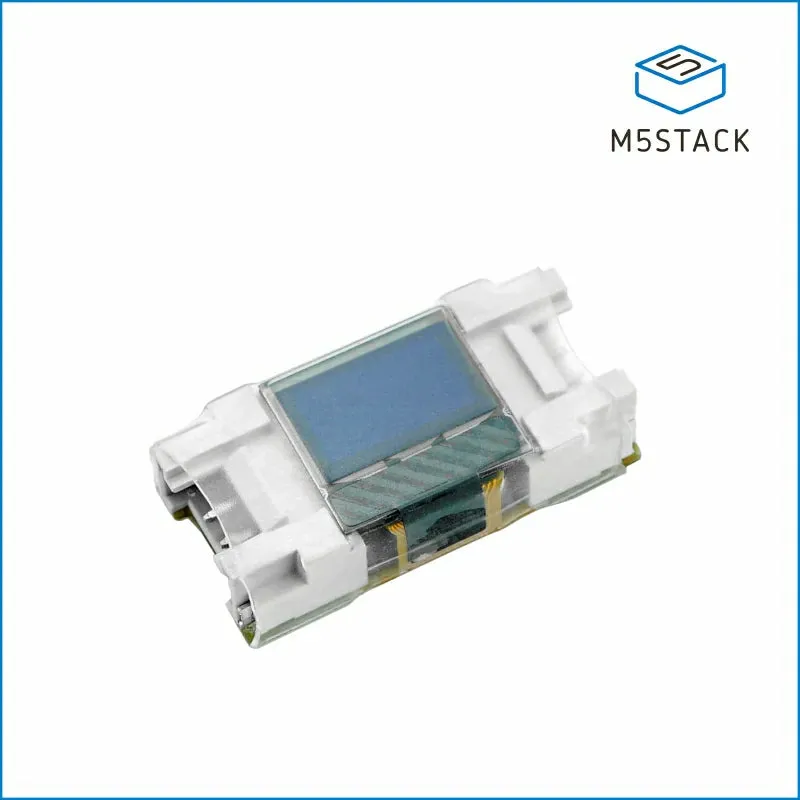

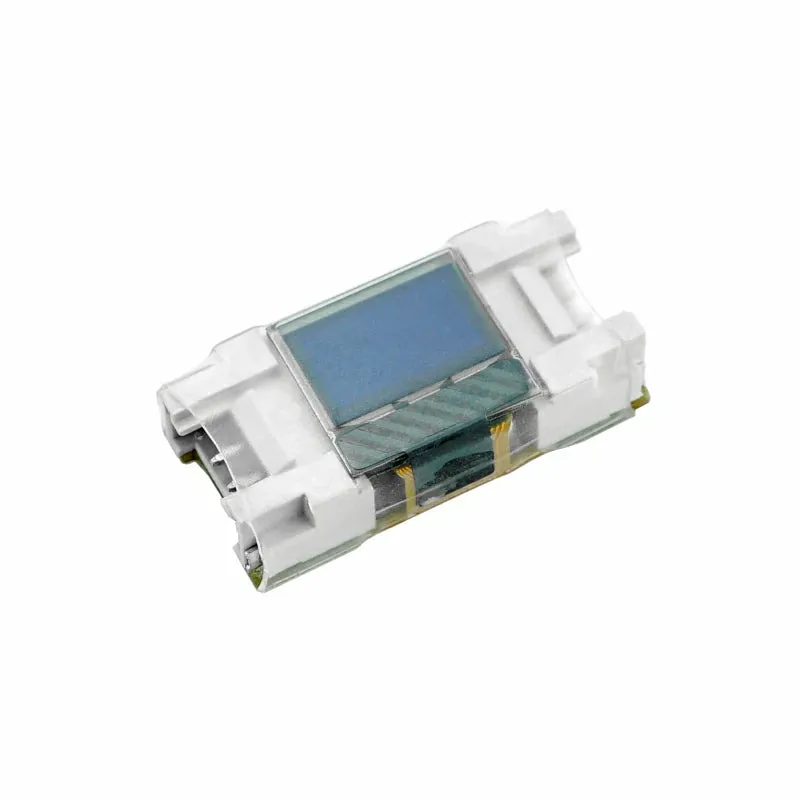

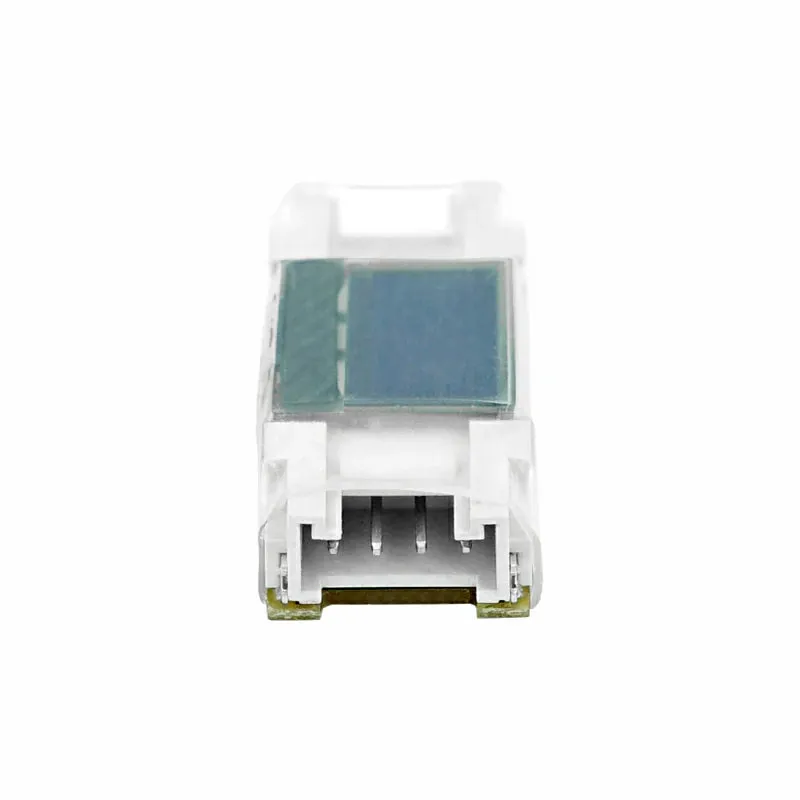

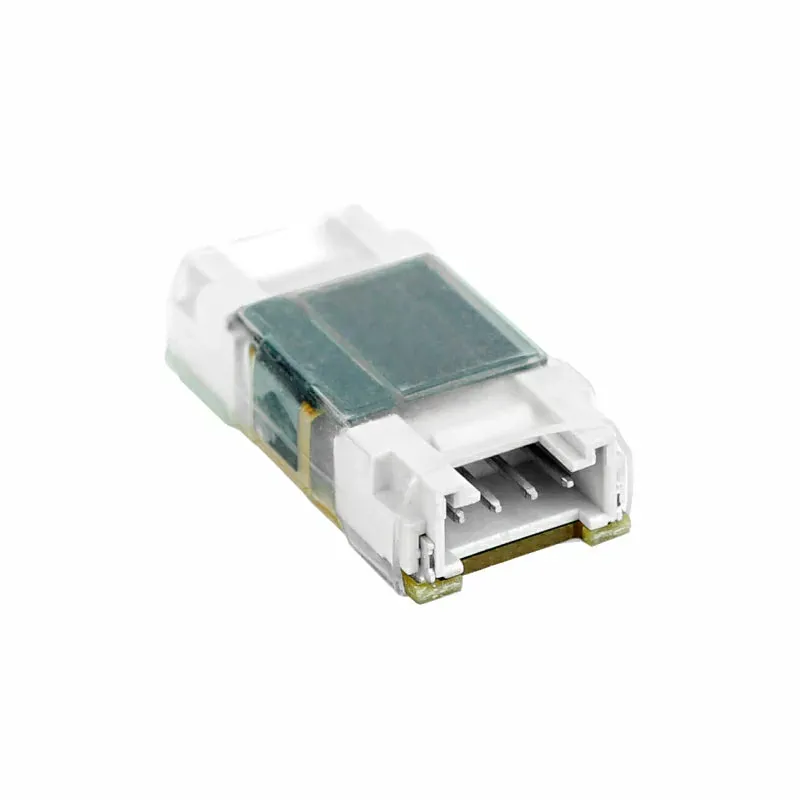

The MiniOLED UNIT is a compact and versatile OLED screen unit that's perfect for use in a wide range of applications. With its 0.42-inch size and 72x40 resolution, this monochrome white display is ideal for embedding in various home products, smart wearable devices, portable devices, and industrial instruments.
Using an I2C interface, the MiniOLED UNIT communicates seamlessly with the M5 Controller (addr: 0x3C), making it easy to integrate into your existing projects. Whether you're building a smartwatch, a fitness tracker, or any other type of device, this OLED screen unit will provide you with the clear and crisp display you need to take your project to the next level.
So why wait? Order your MiniOLED UNIT today and start building your next great project with ease!
Features

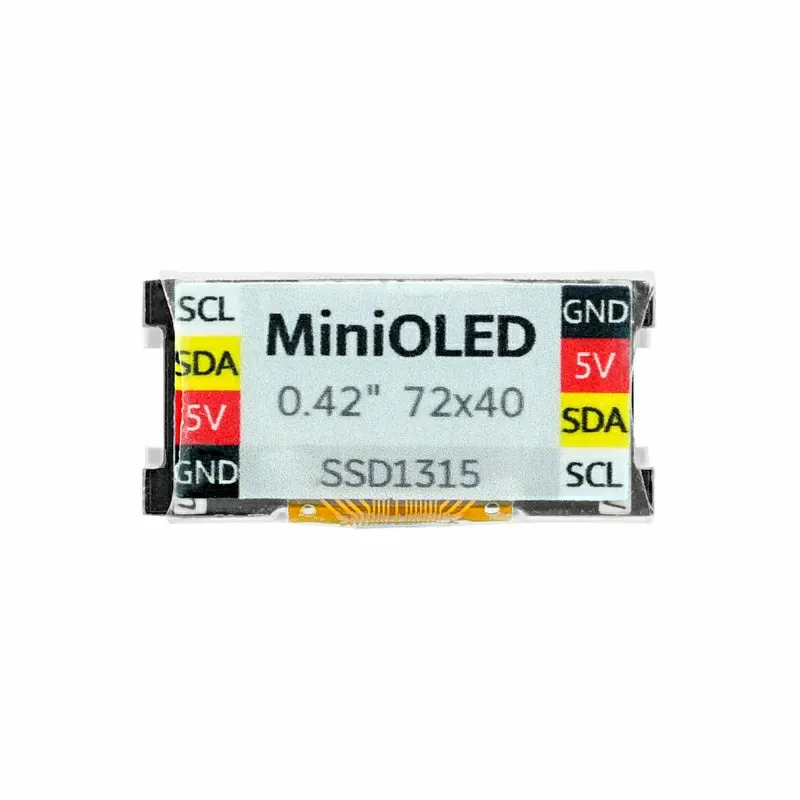

- monochrome display（white）
- I2C Address（0x3C）
- SSD1315 Driver
Includes

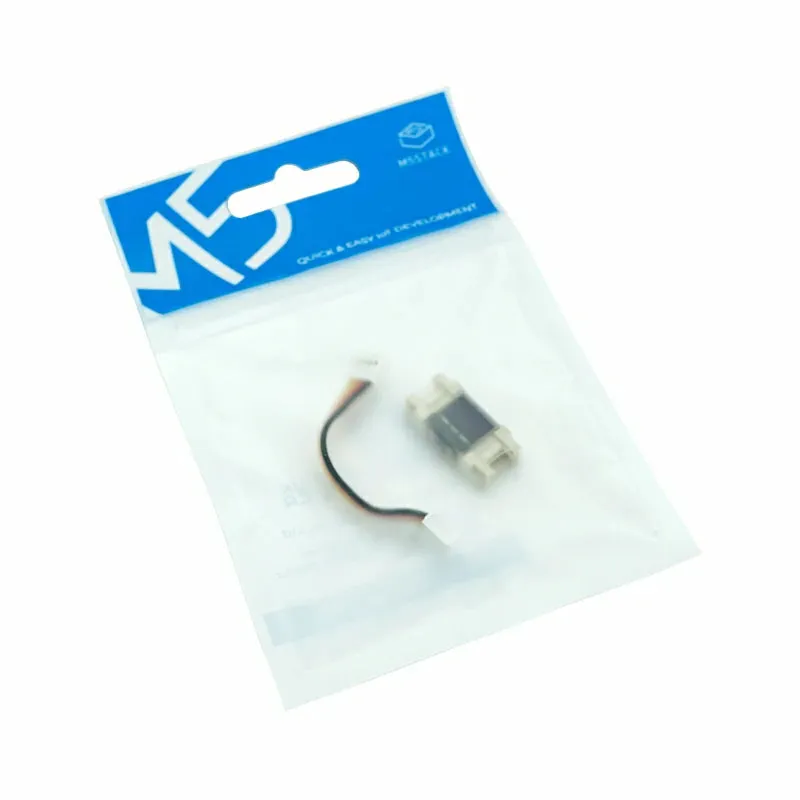

- 1 * MiniOLED UNIT
- 1 * GROVE Cable(5cm)
Applications
- Smart wearables
- Portable equipment and industrial instrumentation
- Home products
Specification
| Resources | Parameters |
|---|---|
| Screen size | 0.42-inch OLED |
| resolution | 72*40 |
| Operating voltage | 3.3V |
| Control chip | SSD1315 |
| Display color | white |
| Display area | 9.196 * 5.18（mm） |
| Pixel pitch | 0.128 * 0.13（mm） |
| Operating temperature | 0-40°C |
| Perspective direction | Full view |

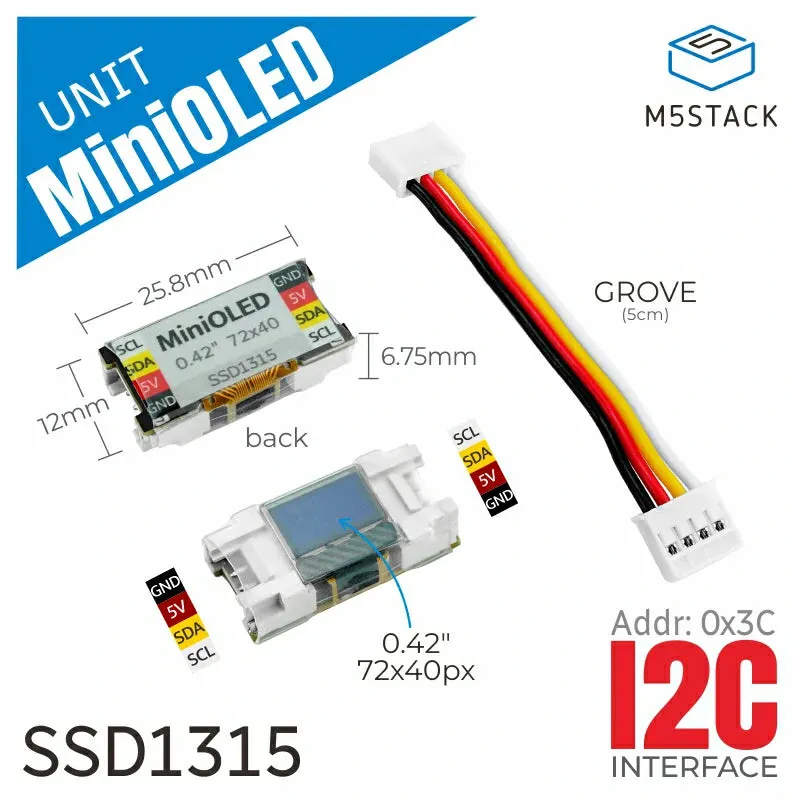

| Product Size | 25.8 * 11 * 6.75mm |
| Package Size | 136* 92* 13mm |
| Product Weight | 2.1g |
| Package Weight | 5.5g |
